The FBR laminating vacuum bag

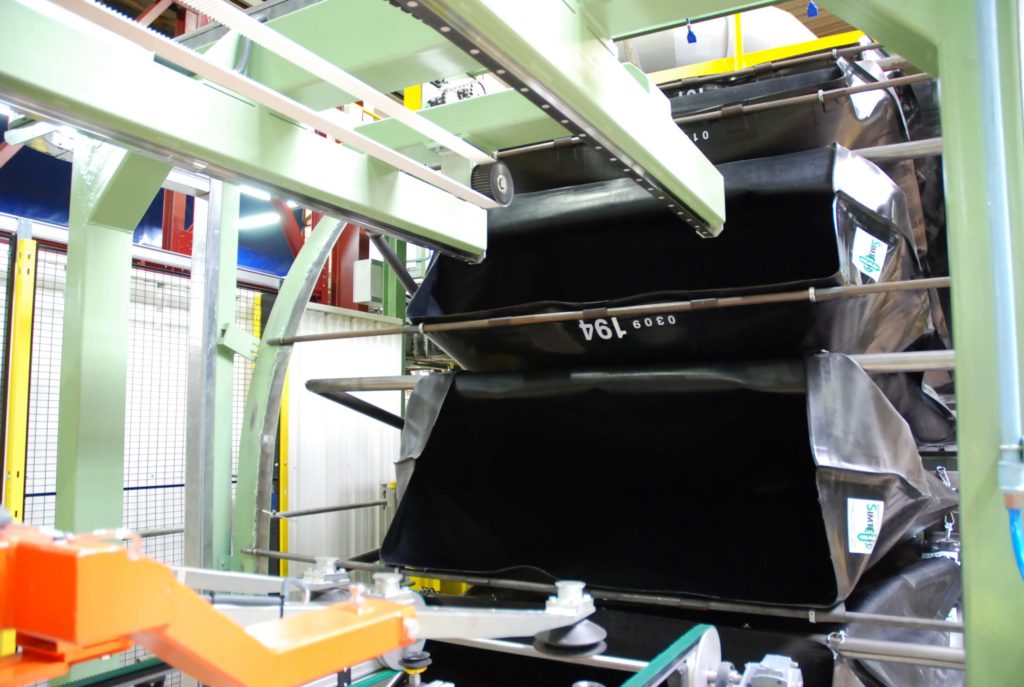

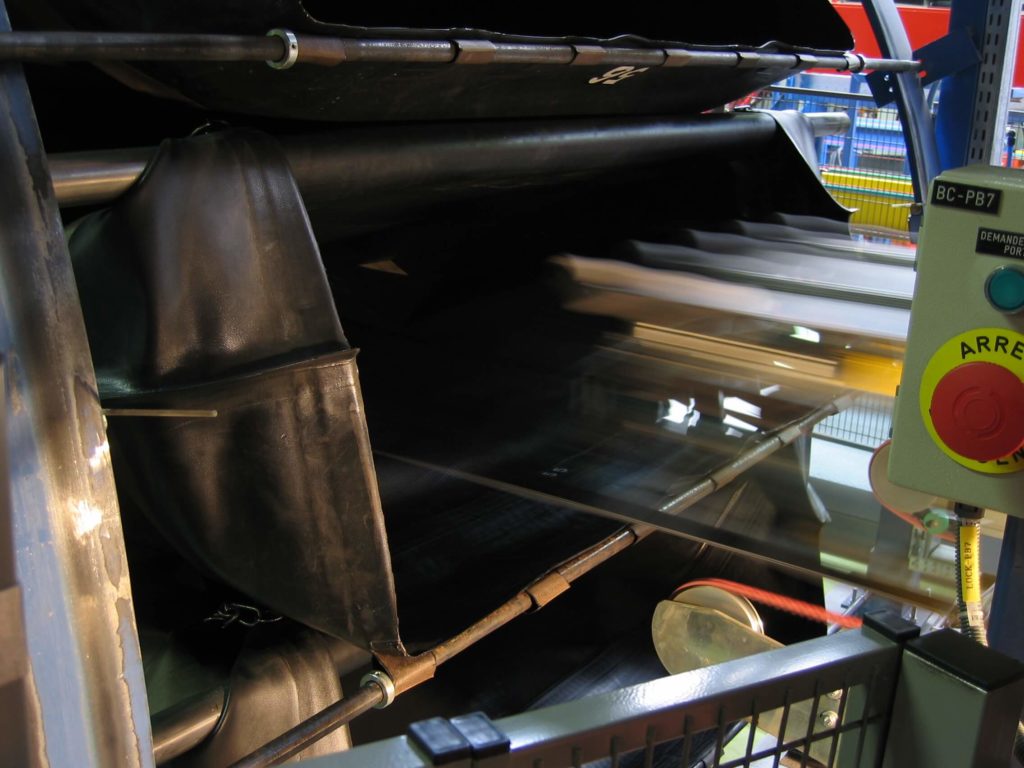

The FBR reusable vacuum bag is a high resistance temperature rubber bag intended for glass laminating. This laminating vacuum bag is used to assemble the glass during the pre-lamination process in automatic oven. The glass sheets are inserted inside the bag. Consolidation takes place under the action of heat and de-airing. The laminating vacuum bag closes with a flap closure system on the oven frame.

User / use

Automobile industry: Complete EVA cycle, PVB pre-lamination, lamination of specific glass parts

Architectural industry: Glass partitions, safety partitions, glass with acoustic properties, anti-UV glazing, heating glass

Military industry: Bullet-proof laminated glass

Research and development: Lamination of glass specimens

General industry: LCD screens, solar panels

Technical characteristics

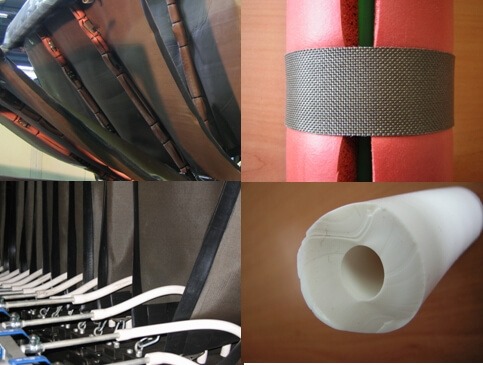

Reusable glass vacuum bags come in the form of an envelope, and its flap closing system ensures perfect sealing. The vacuum channel developed and patented by Simtech ensures efficient deairing. Accessories used for holding on the oven carrier frame are assembled by vulcanisation, which gives them high strength and longer service life.

Performance

The FBR vacuum bag is suitable for continuous production and can withstand temperatures of up to 135°C. Several types of glass can be laminated in a single vacuum bag, which allows you to control your production costs. The FBR vacuum pouch is composed of an internal embossed non-stick coating to reduce any internal pollution from PVB residues and to ensure homogeneous diffusion of the heat. The vacuum bag requires very little maintenance.

Composition

The vacuum bag is divided into 3 parts:

• The body (main structure)
• Internal anti-stick embossed coating.

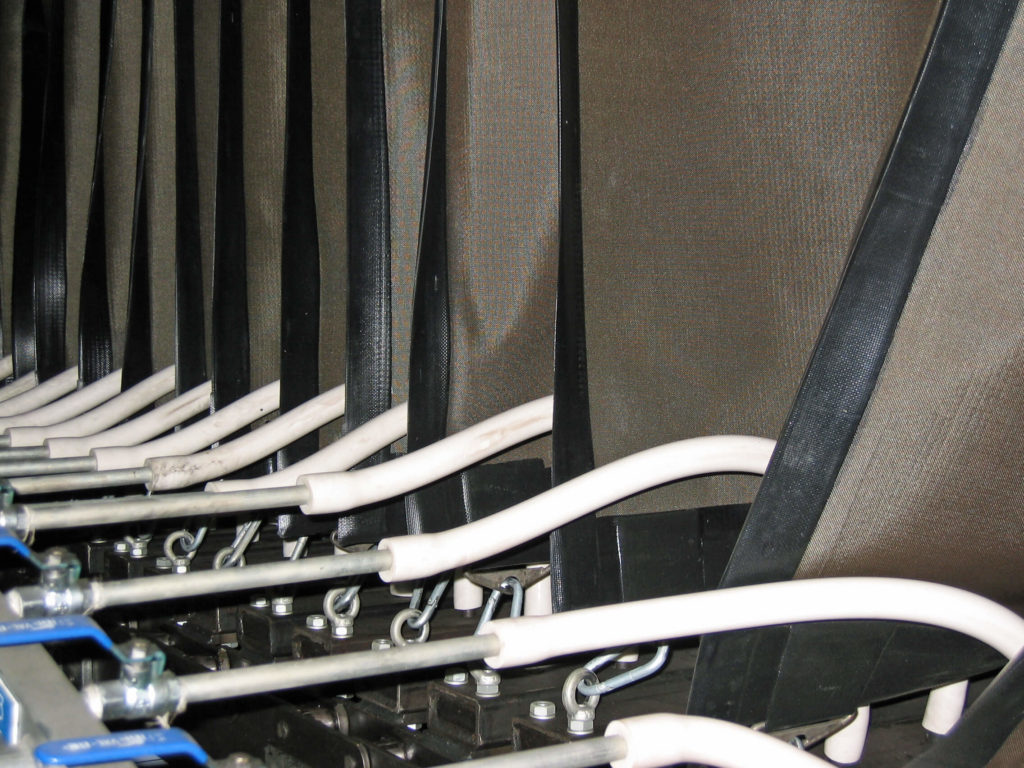

• Toothed vacuum fitting that can be adapted to customer requirements.

Customisation

Our engineering office designs vacuum bags tailored to your requirements and constraints. We adapt the vacuum bags according to the size of the glass, the shape and certain specifics (glass with inserts, significant deflection). The bag’s fastening system can be adapted according to the type of carrier frame.

Do not hesitate to share your requirements with us.
